Hot-Melt Adhesive Carton Sealer | Vertical Case Sealer

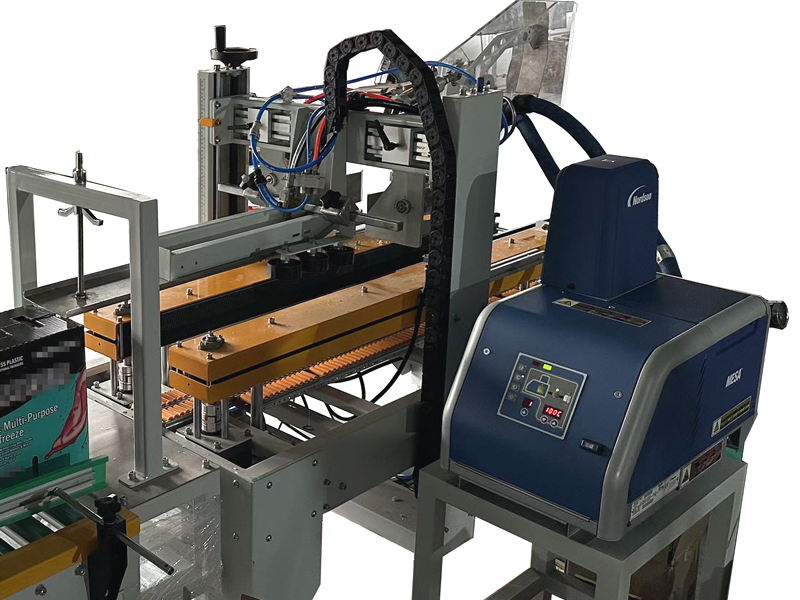

This carton sealer, also called a box or case sealer, is a packaging machine designed to seal the top of corrugated cardboard boxes with hot-melt adhesive after products are loaded. It operates in a continuous cycle: closing the top lower flaps (the lower part of the top section) and sealing the top with hot-melt glue. This carton sealing machine is widely used in packaging operations to ensure that boxes are securely closed and ready for shipment.
Features:
1) Automatically closes the top lower flaps and seals the top.
2) Adjustable width and height to accommodate different carton sizes.
Specifications
Sealing type: vertical
Sealing media: hot-melt adhesive (HMA)
Applicable smallest carton: L200 * W150 * H120mm
Applicable biggest carton: L465 * W400 * H350mm
Applicable tape width: 48mm, 60mm, or 75mm (choose one)
Sealing capacity: 8-10 cartons per minute
Machine dimensions: L2,100 * W1,100 * H1,600mm
Power supply: single phase, 2 kW
Compressed air: 6-8 bar, 100 NL/min
This hot-melt glue carton sealer works with both our WBF60 one-piece folder case former and VCF60H RSC carton erector.
