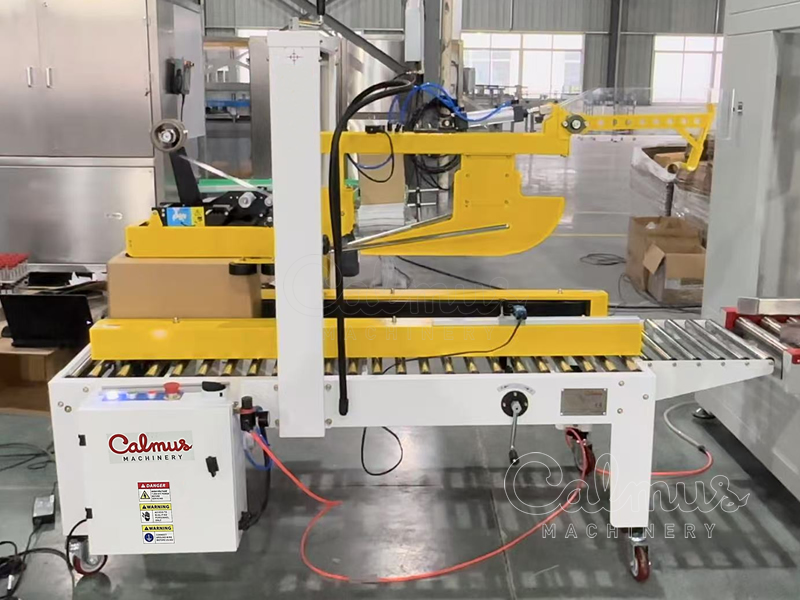

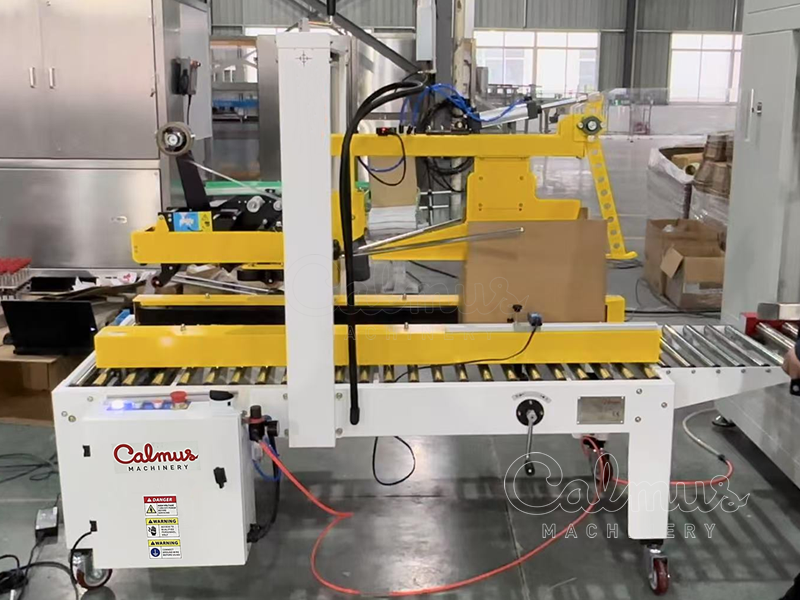

Carton Sealing Machine | Tape Case Sealer
This carton sealer, also called a box or case sealer, is a packaging machine designed to seal the top of corrugated cardboard boxes with adhesive tape after products are loaded. It operates in a continuous cycle: closing the top lower flaps (the lower part of the top section) and sealing the top. This case sealer is widely used in packaging operations to ensure that boxes are securely closed and ready for shipment.
Features:
1) Automatically closes the top lower flaps and seals the top.
2) Adjustable width and height to accommodate different carton sizes.
Specifications:
Sealing type: vertical
Sealing media: adhesive tape
Applicable smallest carton: L200 * W150 * H120mm
Applicable biggest carton: L465 * W400 * H350mm
Applicable tape width: 48mm, 60mm, or 75mm (choose one)
Sealing capacity: 8-10 cartons per minute
Machine dimensions: L2,100 * W1,100 * H1,600mm
Power supply: single phase, 0.3 kW
Compressed air: 6-8 bar, 100 NL/min
A tape carton erector compatible with this sealer is also available.
