Pallet Strapping Machine w/Cornerboard Applicators
This pallet strapper is equipped with four cornerboard applicators and is designed to automate both horizontal strapping and vertical cornerboard application. Built for efficiency, reliability, and precision, it ensures your palletized products are securely protected during storage and transportation. It is particularly suitable for fresh vegetables and fruits packed in cardboard boxes and stacked on pallets.

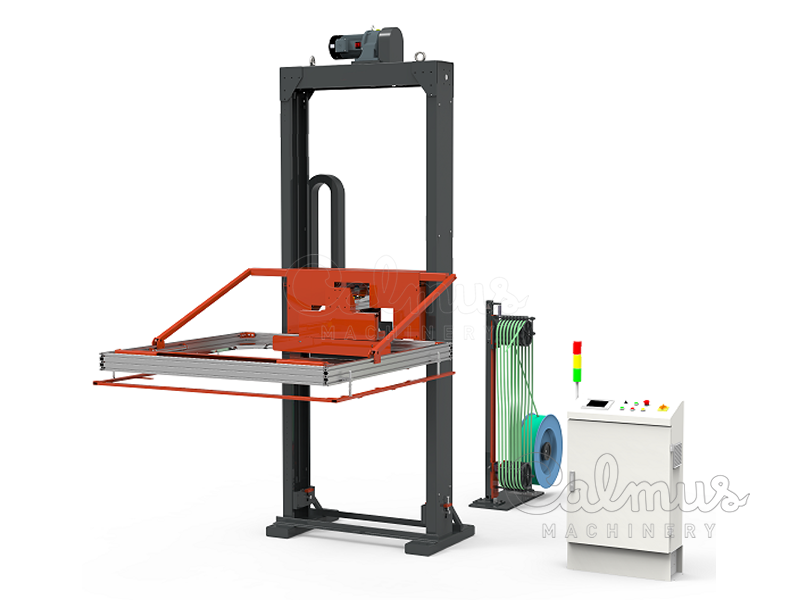

1. Horizontal Pallet Strapping Machine
This strapping system is designed to ensure maximum stability for your pallets.
Features:
1) Equipped with a high-performance high-frequency friction motor core and a stable, maintenance-free hot knife for joints.
2) Modular enclosed electric drive system for the motor head, with a 500mm stroke, completely dustproof and maintenance-free.
3) The main frame consists of two supports and a cross beam, with a sturdy guide shoe and frequency converter for smooth operation and braking.
4) The motor head features a balanced force system, ensuring more even and balanced force distribution at all four corners.
Specifications:
Power supply: 3-phase, customizable voltage, 2.2 kW
Control voltage: 24 VDC
Pallet size compatibility: standard dimensions (L×W×H): 1,100 x 1,100 x 1,800 mm
Conveyor height: 600 mm
Strapping speed: 13 operations per minute
Strapping head stroke: 500 mm
Head movement speed: 180 mm/sec
Arch stroke: 2,000 mm
Arch movement speed: 150 mm/sec
Positioning tolerance: ±10 mm
Machine dimensions: 4,219 x 1,600 x 3,850 mm
Weight: 1,500 kg

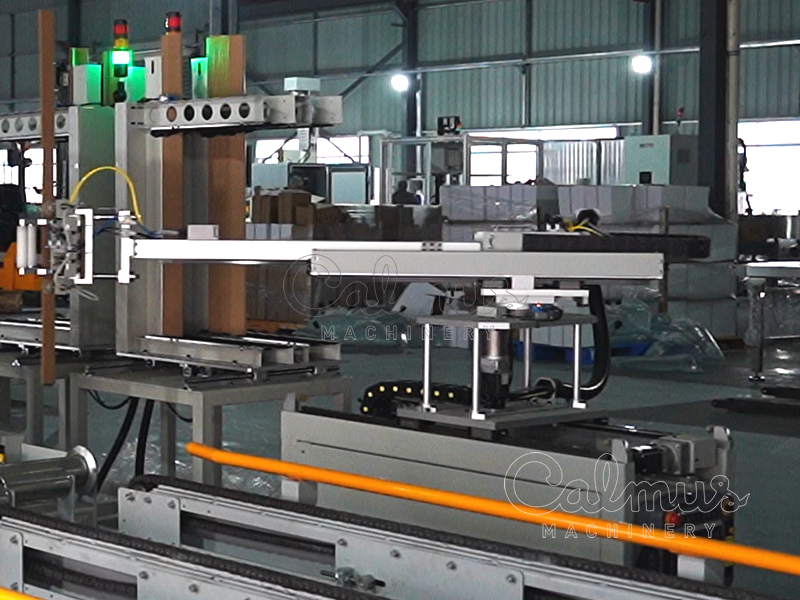

2. Vertical Corner Board Applicator
The corner boards can provide additional protection and reinforcement to your pallet edges.
Features:
1) Automated corner board placement: includes a robotic arm with a stroke range of 900mm, capable of accurate and efficient application.
2) Adjustable speed: corner grip motion speed ranges from 0-20 meters/min, while turning speed reaches up to 10 meters/min.
3) Height adaptability: adjustable to match the height of loaded pallets.
4) Corner replenishment system: alerts when corner boards are empty and stays in standby mode until restocked and reactivated.
Specifications:
Robotic arms: 1
Stroke range: 900 mm
Grip motion speed: 0-20 meters/min
Turning speed: 0-10 meters/min
