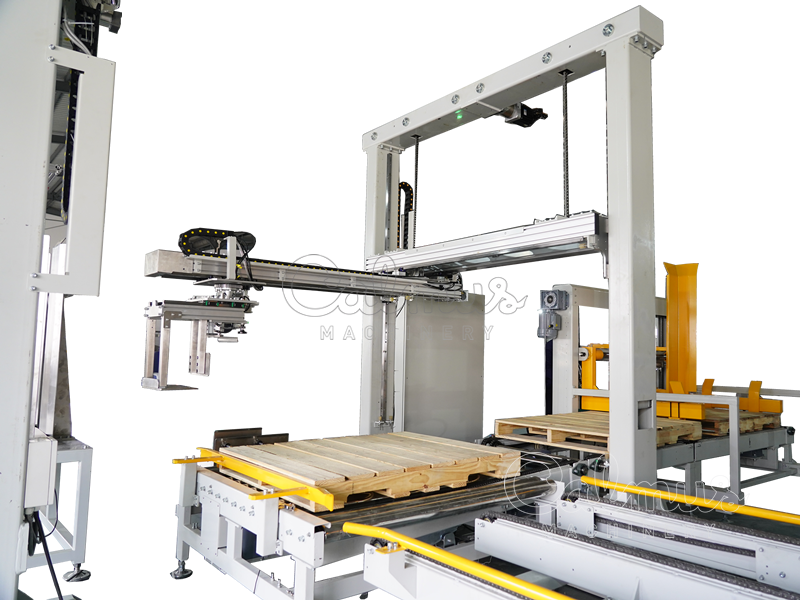

Box Palletizing Machine | Case Palletizer w/Anti-slip Sheet Applicator

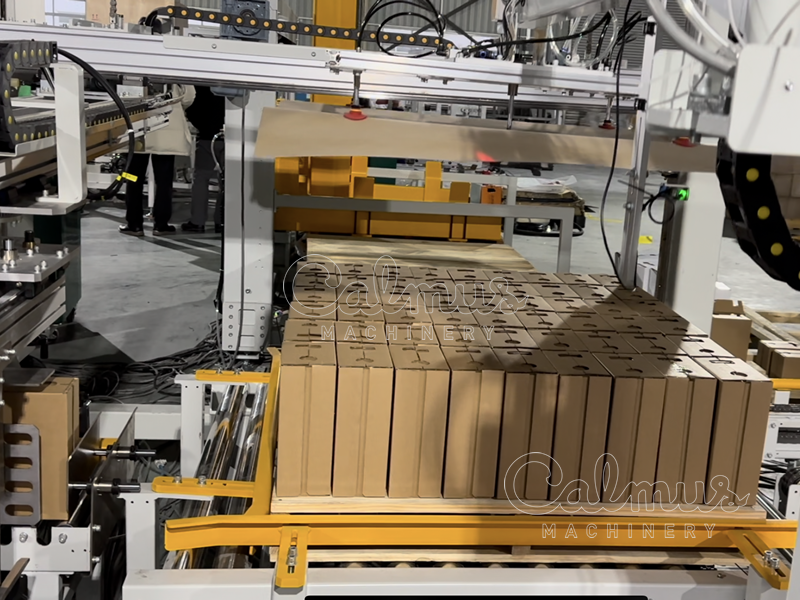

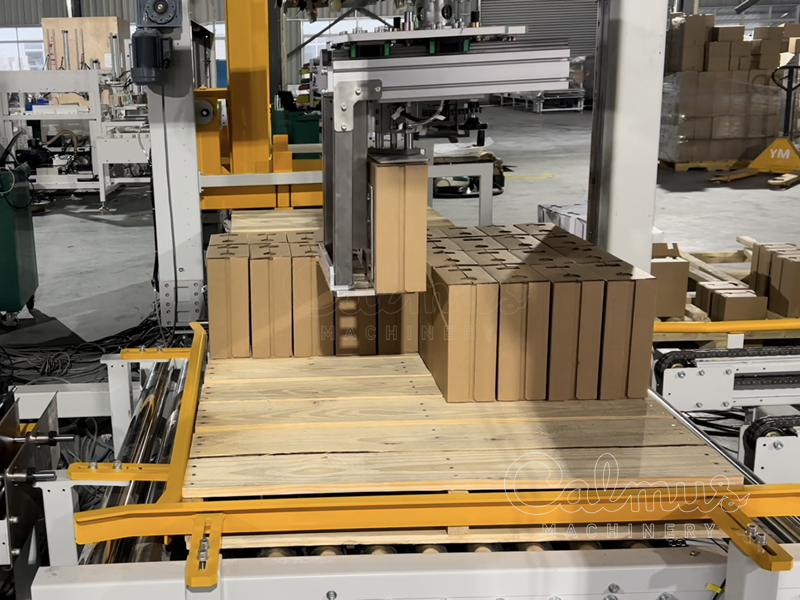

This low-level case palletizer is designed to automatically stack sealed carton boxes in a pre-set pattern on a pallet. It can arrange cases in multiple layers, with an anti-slip sheet placed on top of each layer to ensure stability. Featuring a user-friendly touch-screen PLC controller, this palletizing machine offers easy operation and efficient performance.
This palletizer is an ideal downstream machine for bag-in-box packaging.
Composition:
1. Carton sorting infeeder
Sort cartons according to a set pattern and then infeed them.
2. Carton palletizer
Catch sorted carton(s) and then rise, move and put it/them on a pallet.
3. Pallet storage and feeder
5-10 empty pallets can be stacked in the storage section. Pallets are fed to the palletizer according to the PLC setting.
4. Loaded pallet deliver
When a pallet is loaded fully, it will be delivered to an designated location.
Specifications:
Type: low-level, coordinates
Palletizing capacity (including anti-slip sheet applicating): 4 cycles/min (1-2 cartons per cycle which depends on the box size and weight)
Power supply: 3 phases, customized voltage, 6kW
Air consumption: 1,000NL/min
Air source pressure: 6-7 bar
Weight: 3,500 kg
The anti-slip sheet applicator is optional, and we can also supply the palletizer without the applicator.
