Heavy-Duty Rotating Joint Palletizer

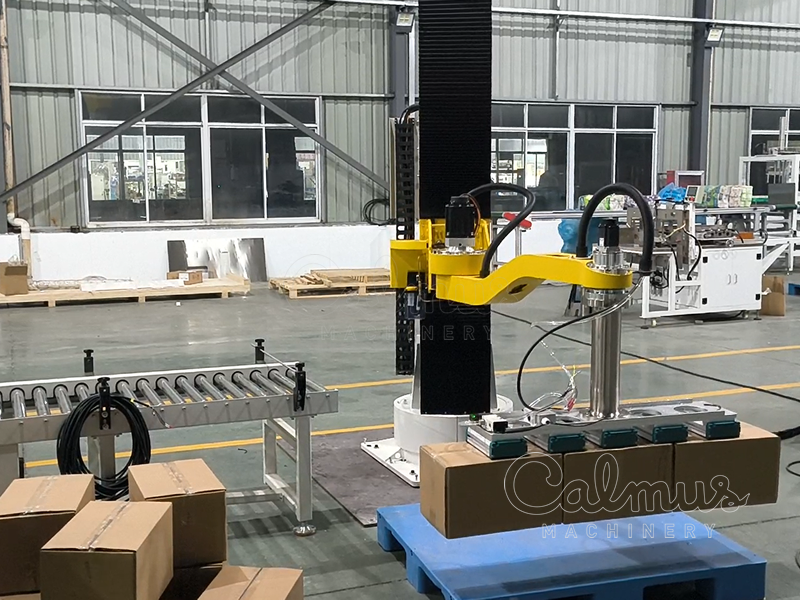

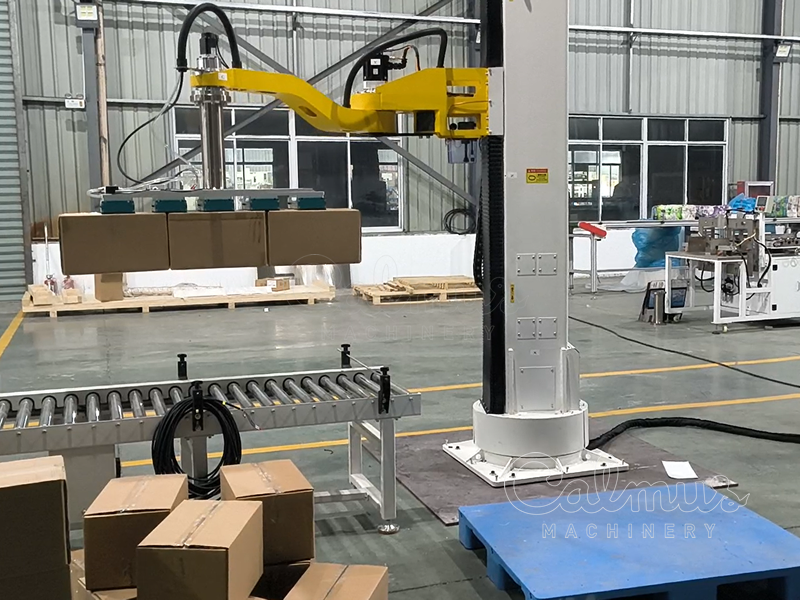

This heavy-duty case palletizer is designed to automatically stack sheavy loads in a pre-set pattern on a pallet. The machine features a robust rotating column connected to a rigid horizontal arm that can slide vertically along the column. The horizontal arm has a joint, allowing the outer arm to rotate horizontally. Different gripping devices can be installed at the end of the arm depending on the product. The palletizer adjusts the height of the gripper by sliding the horizontal arm vertically along the column, adjusts the left and right position of the gripper by rotating the column, and adjusts the distance of the gripper through the joint. The palletizer has a simple and sturdy structure, capable of stacking heavy products; it is servo-driven, ensuring smooth and efficient operation; and it is fully automatic. It is widely used for products such as cartons, plastic cases, drums, bags, and film-wrapped items.
For palletizing 20L or larger bag-in-box products, this palletizer is highly recommended. It can handle two boxes at a time, offering both efficiency and stability.
Features:
1) PLC and HMI control for easy operation.
2) Sturdy structure, capable of stacking heavy objects with a maximum load of 80KG.
3) Servo-driven, offering fast operation and precise positioning.
4) Compact footprint, saving space.
5) Multiple palletizing pattern can be pre-programed and easy to switch.
6) Can be configured with an automatic pallet feeder, with a large pallet storage capacity that can accommodate more than 10 empty pallets.
Specifications
Type: single column with horizontal rotating joint
Palletizing speed: 5-7 cycles/min
Maximum load capacity: 80kg

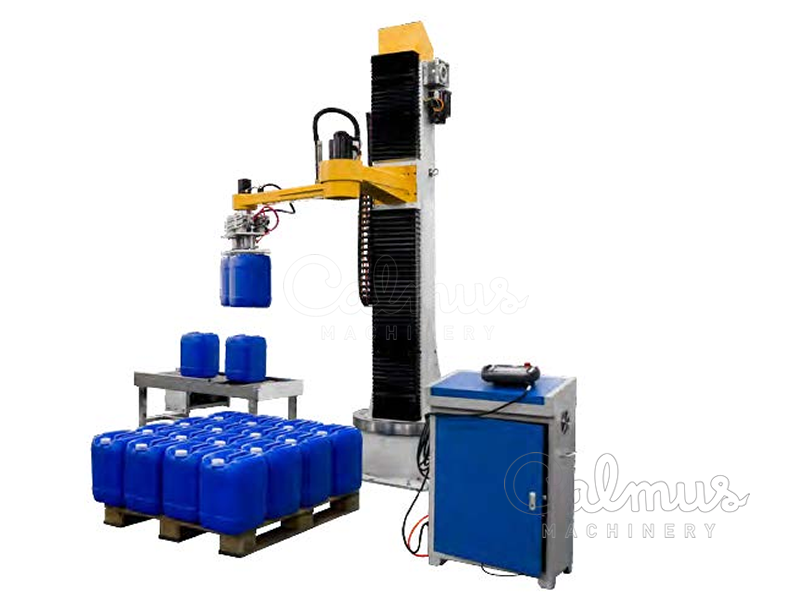

Suitable products: sealed cartons, plastic cases, drums, bags, film-wrapped items
Product dimensions: L:150-1,200mm W:100-1,200mm H:100-600mm
Pallet dimensions: L1,000-1,300mm * W1,000-1,300mm
Power supply: Three-phase, 7.5 kW
Compressed air: 5-8 bar
Machine dimensions: L2,450 * W1,000 * H3,500mm
Weight: 1,500kg
This palletizer can also be optionally equipped with an anti-slip sheet applicator, which places an anti-slip sheet on each layer of products.
