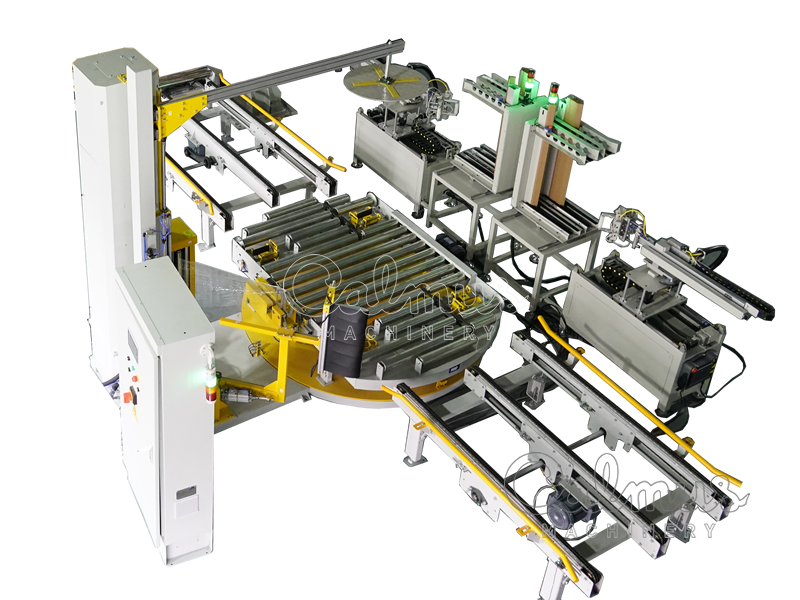

Stretch Wrapper with Cornerboard Applicators for Palletized Loads
This pallet stretch wrapper with cornerboard applicators is designed to provide reliable protection and security for palletized loads. This fully-automatic stretch wrapping system is equipped with two cornerboard applicators, which place a corner board on each vertical corner of your pallet load, minimizing the risk of damage during transit and handling. With its reliable performance and practical features, this machine ensures consistent, high-quality wrapping, offering better protection for your palletized loads during transit and handling.
Features and Benefits:
1) Cornerboard applicators for enhanced protection
This stretch wrapper is equipped with two cornerboard applicators that automatically place corner boards on your palletized products. This added feature protects the vulnerable corners of your load, preventing damage during transport, stacking, and handling.
2) Stable and secure stretch film wrapping

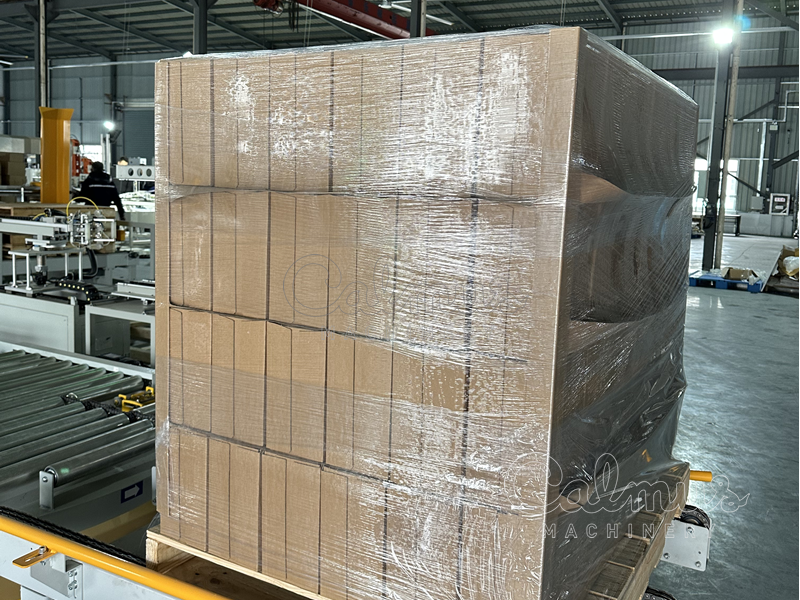

After applying corner boards, the machine wraps the pallet with stretch film to ensure tight, secure, and uniform wrapping. The stretch film provides additional stability, keeping the load intact during transit and reducing the risk of shifting or toppling.
3) Fully-automatic
This stretch wrapper operates fully automatically, requiring minimal operator intervention. It is designed for easy integration into your existing production line, allowing for quick setup and reduced labor costs.
4) Durable and heavy-duty construction
The machine main body weight of 2,200 kg ensures that it is built to handle heavy-duty loads and withstand continuous operation. Its robust construction guarantees long-lasting performance, even in demanding industrial environments.
5) Flexible pallet size compatibility
The machine can accommodate pallets up to 1,300 mm x 1,300 mm in size and wrapping heights up to 2,000 mm, making it highly versatile for various pallet dimensions and types of goods.
Specifications:
Machine type: turntable, fully-automatic, pre-stretched
Max pallet size: 1,300 mm x 1,300 mm
Max wrapping height: 2,000 mm
Number of robotic arms: 2
Wrapping capacity: 25-30 pallets/hour (dependent on pallet size)
Turntable speed: 15 circles/min
Machine weight: main body 2,200 kg
The cordboard applicators are optional, and we can also supply the stretch wrapper without the applicators.
