Monoblock Delta Robot Case Packer | Cartoning Machine for Stand-Up Pouches

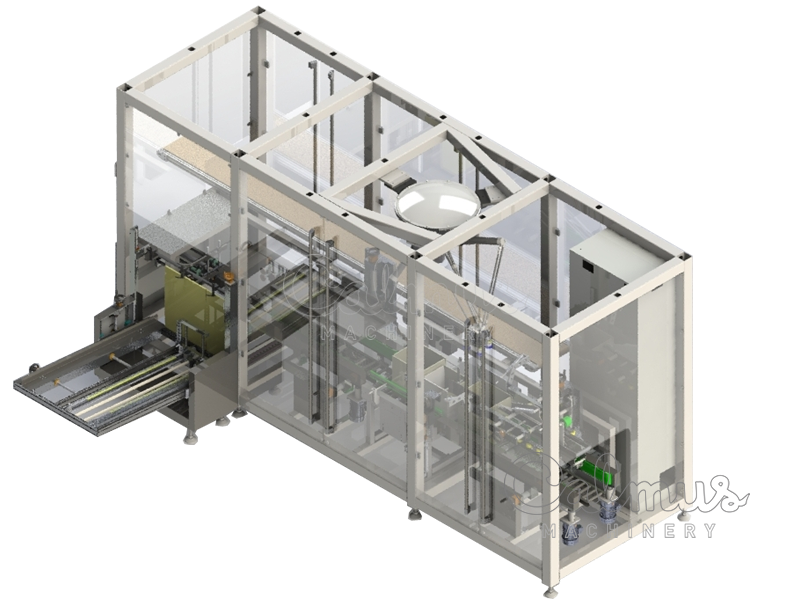

This fully-automatic form-insert-seal 3-in-1 case packing system is specifically designed for cartoning stand-up pouches or lay flat bags according to preset packing patterns. The machine integrates case forming, product loading, and sealing into a single compact unit. It processes fold-flat carton blanks by erecting and bottom-sealing them, conveys them to the loading station, picks stand-up pouches from the infeed conveyor, inserts them into the cases from the top, and finally seals the tops. This monoblock carton packaging machine streamlines packaging operations while minimizing floor space requirements, making it ideal for production lines seeking efficient automation.

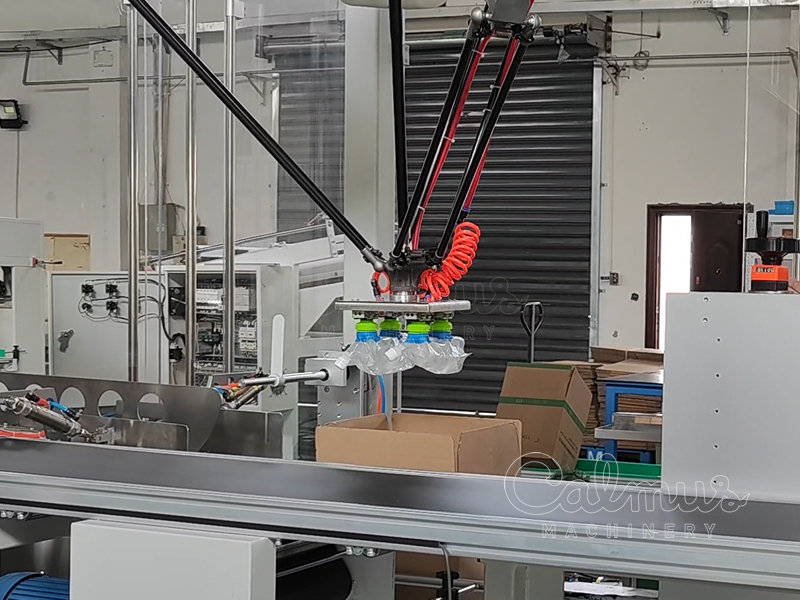

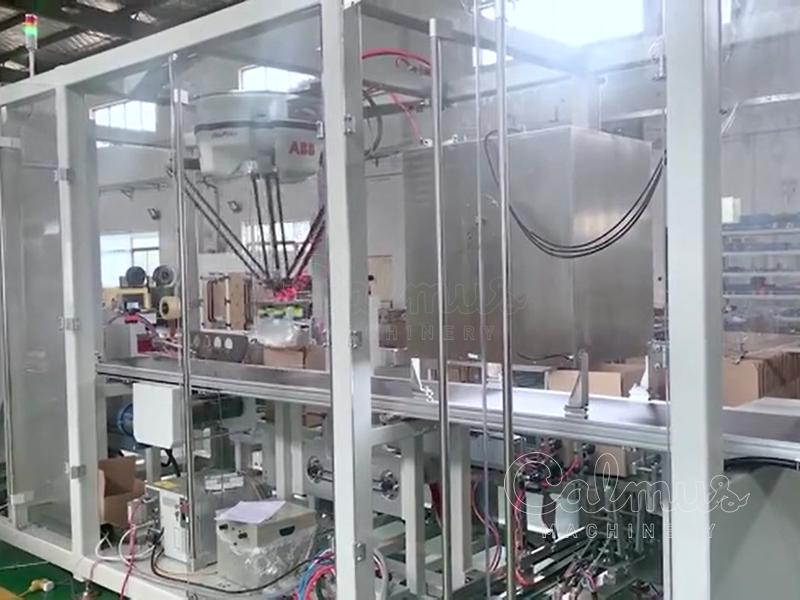

A delta robot (ABB IRB 360 FlexPicker) is employed for picking and inserting filled pouches into cases. ABB IRB 360 FlexPicker is capable of the fastest picking applications and have been optimized for packing applications. The robot has outstanding motion performance with the shortest cycle times, precision accuracy for payloads from 1 to 8 kg.
This cartoning machine is highly versatile, capable of handling various case sizes and packing patterns to meet diverse packaging needs. The monoblock design eliminates the need for multiple machines, reducing overall floor space and simplifying your production process. With easy installation and minimal maintenance requirements, this system helps optimize production efficiency and reduces downtime in your packaging line.
Features:
1) Form-insert-seal 3-in-1 design: compact footprint and easy installation.
2) The ABB FlexPicker delivers both precision and reliability in pick-and-place operations.
3) Control panel with PLC touchscreen display for user-friendly operation.
4) Alarms for material shortage, door opening, and faults.
Specifications:
Packing capacity: 450 cases/hour (2,700 x 1-litre pouches)
Sealing media: adhesive tape or hot-melt glue
Power supply: 3 phases, customized voltage
Compressed air: 6-8 bar
Power consumption: 5 kW
System weight: 6,000 kg
System dimensions: 5,300*2,800*2,800mm
This delta robot case packer is only suitable for flat-lying pouch packing. If you need upright pouch packing in cartons, please check our FIS300L and FIS300C Case Packers, or Wrap-Around Cartoning Machine WIS300C.
