Top-Load Monoblock Case Packer | Form-Load-Seal 3-in-1 Cartoning Machine

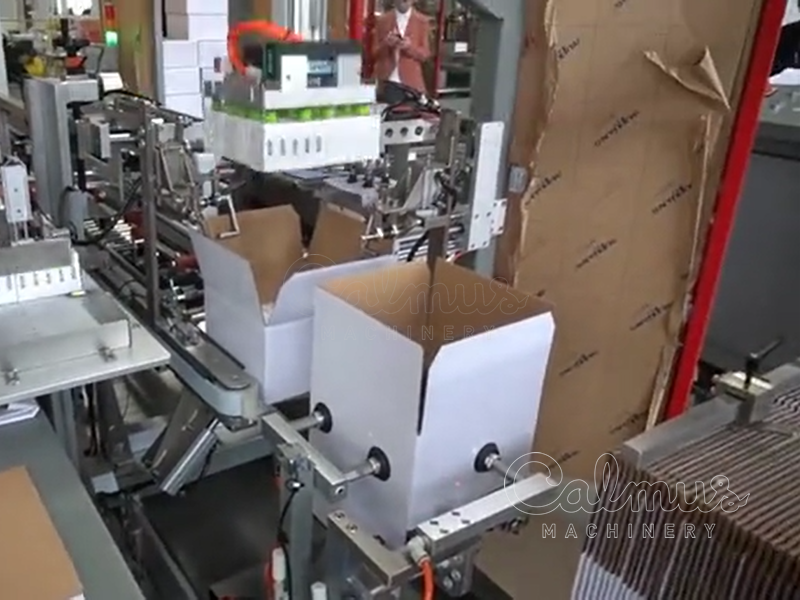

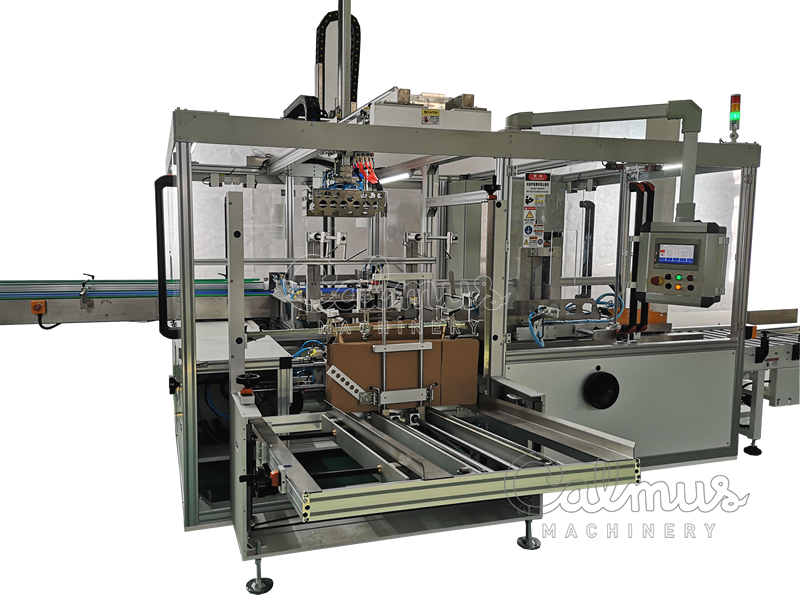

This top-load monoblock case packer is a 3-in-1 cartoning machine that integrates case forming, product loading, and carton sealing into a single compact and efficient unit. It erects fold-flat carton blanks vertically, conveys the cases to the loading station, closes the bottom side flaps by folding them, sorts (and groups, if applicable) infeed products, picks and inserts the products into the cases from the top, conveys the loaded cases to the sealing station, and seals both the tops and bottoms. Designed to streamline packaging processes while saving floor space, this cartoning machine is ideal for production lines seeking automation with minimal setup.

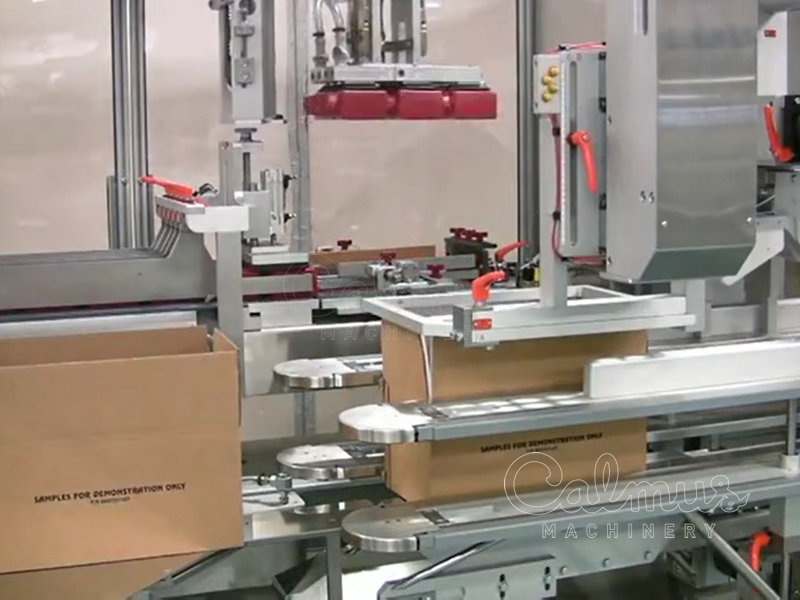

The machine is equipped with a picking system that can grab products and load them into cases in multiple layers from the top. Depending on the product type, the picker can be customized with suction cups, clamps, or grippers to handle a wide range of items.
This 3-in-1 cartoning machine is highly versatile, capable of handling various case sizes and packing patterns to meet diverse packaging needs. It supports both tape sealing and hot-melt glue sealing, providing flexibility for different packaging requirements. Its monoblock design ensures easy installation and seamless integration into your packaging line.
Features:
1) Form-load-seal 3-in-1 design: compact footprint and easy installation.
2) Automatically positions the top of the carton for loading.
3) Supports automatic case forming, loading, and sealing for products of various specifications at a single workstation.
4) Quick and intuitive size adjustments, addressing issues like large footprints, high labor intensity, and low efficiency in traditional production lines.
5) PLC-controlled with a touchscreen interface displaying fault points and operational status.
6) Alarms for material shortage, door opening, and faults.
7) Optional inkjet barcode printing and barcode recognition.
9) Optional function for placing divider boards between layers inside cartons.
Specifications:
Packing type: Top-load
Sealing media: Tape or hot-melt glue
Compressed air: 6-8 bar
Power supply: 3-phase, customizable voltage
Power consumption: 3 kW
System weight: 2,300 kg
System dimensions: L3,500 * W1,900 * H2,300 mm
We also offer a side-load case packer option for higher packaging capacity or different product requirements.
