Bag-in-Box Filler | Fully-automatic BiB Filling Machine

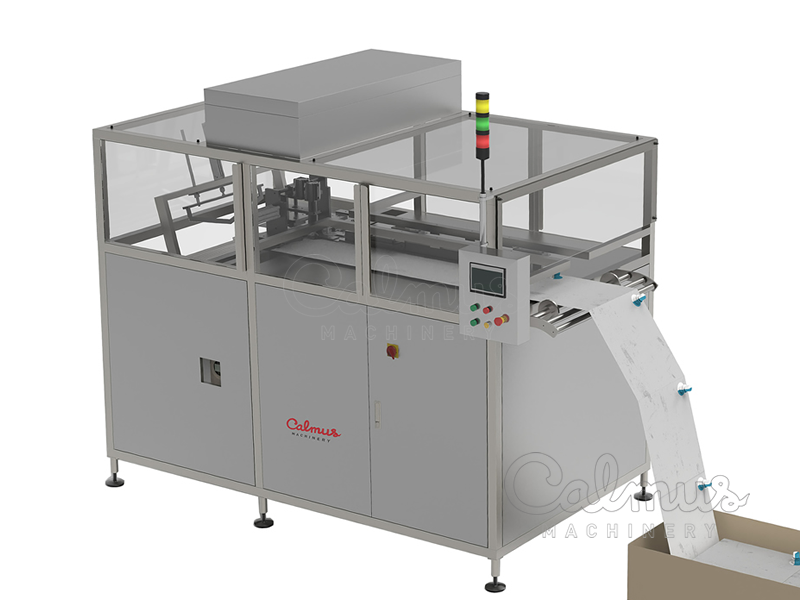

The BIBF600 is a web-fed Bag-in-Box (BiB) Filler manufactured in China. It is designed for filling spouted bags with a wide range of liquids, including drinking water, edible oil, post-mix syrup, fresh milk, and beverages. This fully-automatic filling machine utilizes a PLC and touchscreen control system to streamline operations. The entire process – including continuous bag feeding, decapping, optional vacuumization, optional nitrogen injection, filling, capping, cutting apart from continuous bags, and transferring to the conveyor – is completed automatically without the need for manual intervention.
Additionally, the machine is equipped with a CIP (Clean-in-Place) function and pipeline connections for easy cleaning and maintenance.
Features：

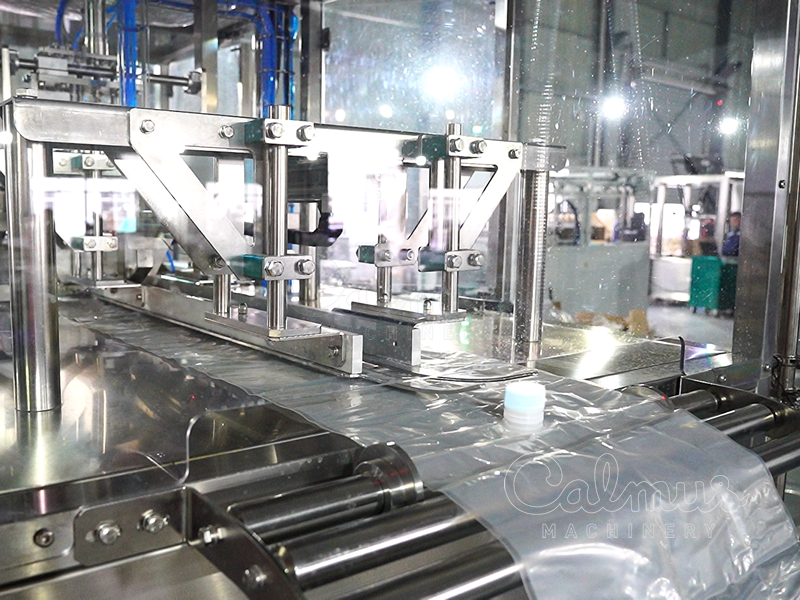

1. Fully-automatic: web-type bag feeding ensures seamless and efficient processing.
2. Easy to operate: the touchscreen control system simplifies operation.
3. High-precision filling: equipped with an electromagnetic or turbine flowmeter for accurate quantitative filling.
4. Clean air supply: an integrated air filter ensures a clean filling environment.
5. Durable construction: made with a 304 stainless steel body and 316L stainless steel fluid-contact parts for superior hygiene and longevity.
6. Flexible capacity adjustment: easily switch between different bag capacities by adjusting the settings.
7. Optional features: vacuumization and nitrogen injection are available for specific product requirements.
Specifications：

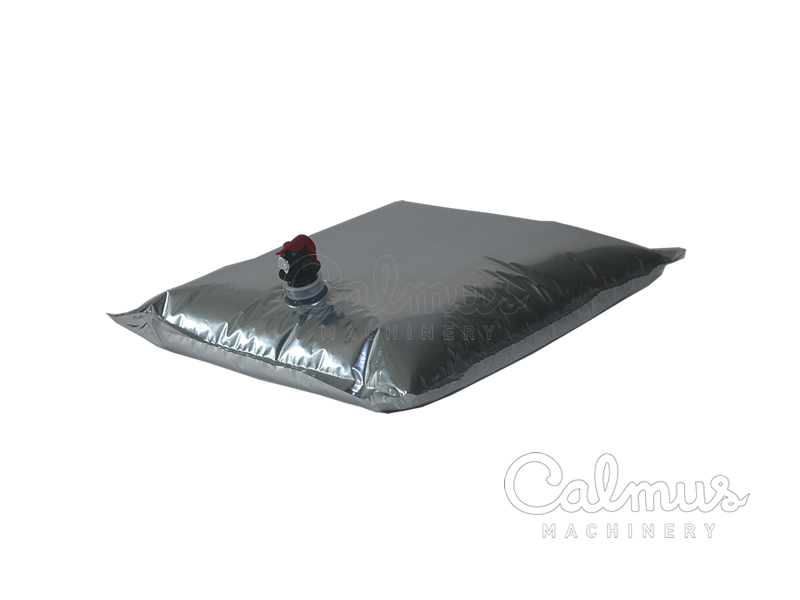

Applicable bags: pre-cut continuous module or WEB type, 2-25 litres spouted bags. (Spout is called “gland” or “flange” too.)
Filling capacity:
400-450 bags/hour for 5-liter bags;
360-400 bags/hour for 10-liter bags;
250-270 bags/hour for 20-liter bags.
Power supply: single-phase, 1.0 kW
Compressed air: 6-8 bar, 25 NL/min
Remarks:
1) We also supply a complete Bag-in-Box Filling and Packaging Line.
2) A monoblock Bag-in-Box Cartoning Machine compatible with this filler is also available.
