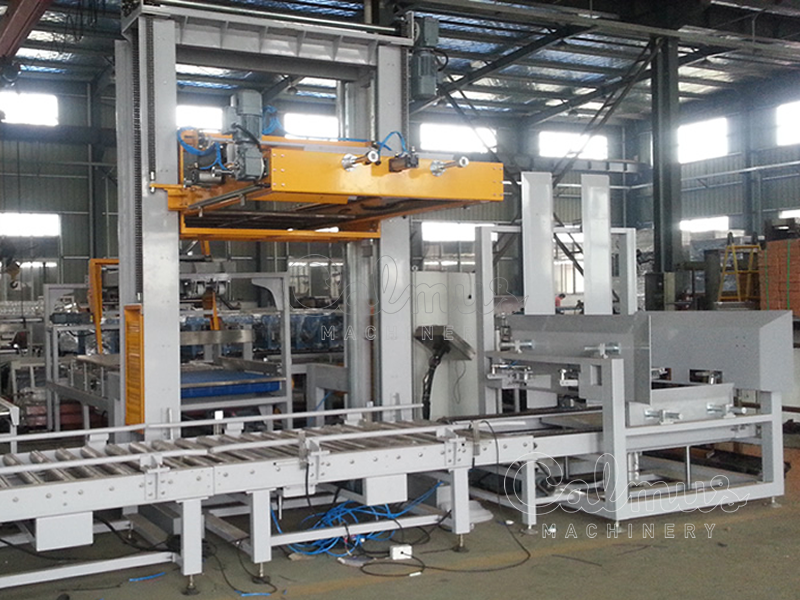

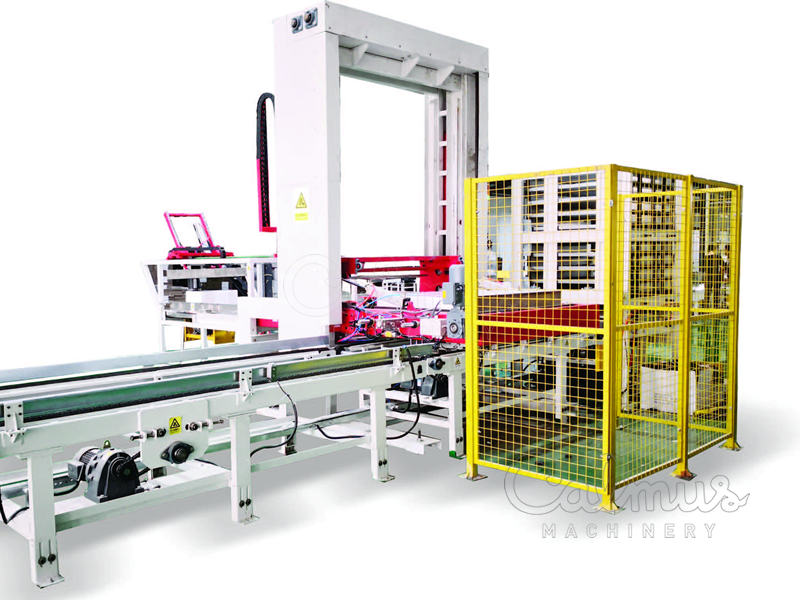

High-Speed Row-Push Palletizer
This is a high-efficiency low-level automatic palletizer designed to automatically stack various types of packaging onto pallets according to preset patterns. In addition to sealed carton boxes, this palletizer is also suitable for film-wrapped products (such as shrink-wrapped spring bottles) and bagged products.
The palletizer forcibly rotates or conveys cartons based on the set arrangement to achieve sorting and alignment. When a row of cartons is formed, the supply conveyor pushes them into the lifting device by using a cylinder. This process repeats, pushing the next row and subsequent rows until a complete layer is formed. The elevator then lifts the sorted layer, moves it forward to the top of the palletizing device, and places it steadily onto the pallet or the previous layer to form an automated stack. The palletizing device relies on a variable frequency motor and chains to perform its lifting, lowering, and forward (or backward) movements. Once a pallet reaches the required number of layers, the machine signals to push the full stack out of the palletizing section, and the full stack is transported to the designated location through the exit conveyor.
This palletizer uses a touchscreen PLC controller and is easy to operate.

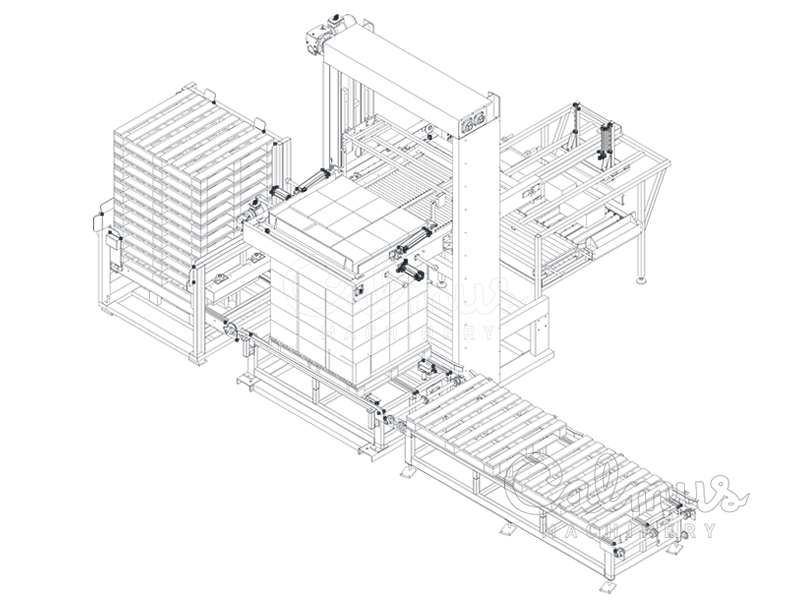

Equipment Components:
1. Carton Sorting Feeder
Sorts cartons according to the set pattern and conveys them to the next stage.
2. Carton Palletizer
Collects sorted cartons, lifts them, and places them onto the pallet in the desired arrangement.
3. Pallet Storage and Feeder (Optional)
Can store 5-8 empty pallets and feeds them to the palletizer based on PLC settings.
4. Loaded Pallet Exit Conveyor
Transports fully loaded pallets to a designated location.
Materials:
Frame: SS41 steel
Axes: S45C steel
Controller enclosure: SS41 steel
Guide plate: SS41 steel
Specifications
Type: gantry and low-level row-push
Palletizing capacity: 10-13 cartons/min
Applicable products: cartons, film-wrapped, bagged, and brick-shaped products
Applicable product dimensions: L150-1200mm, W100-1200mm, H100-600mm
Applicable pallet dimensions: L1000-1300mm,W1000-1300mm
Power supply: 3 phases, customized voltage, 8 kW
Compressed air: 5-6 bar, 500NL/min
Machine dimensions: 2,300*5,200*1,350mm
Machine weight: 4,000 kg
This palletizer can also be optionally equipped with an anti-slip sheet applicator, which places an anti-slip sheet on each layer of products.
